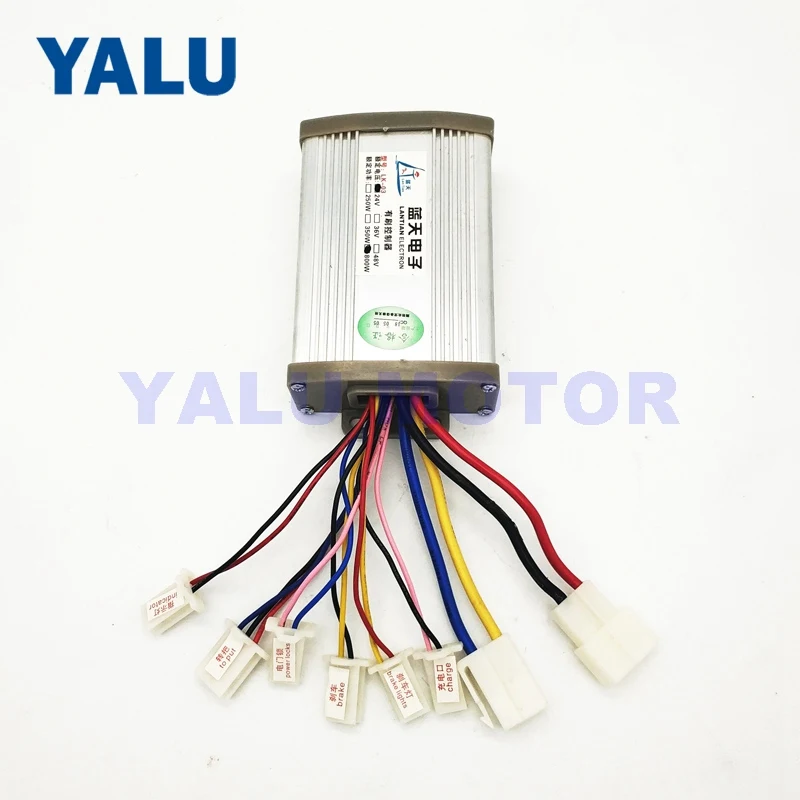

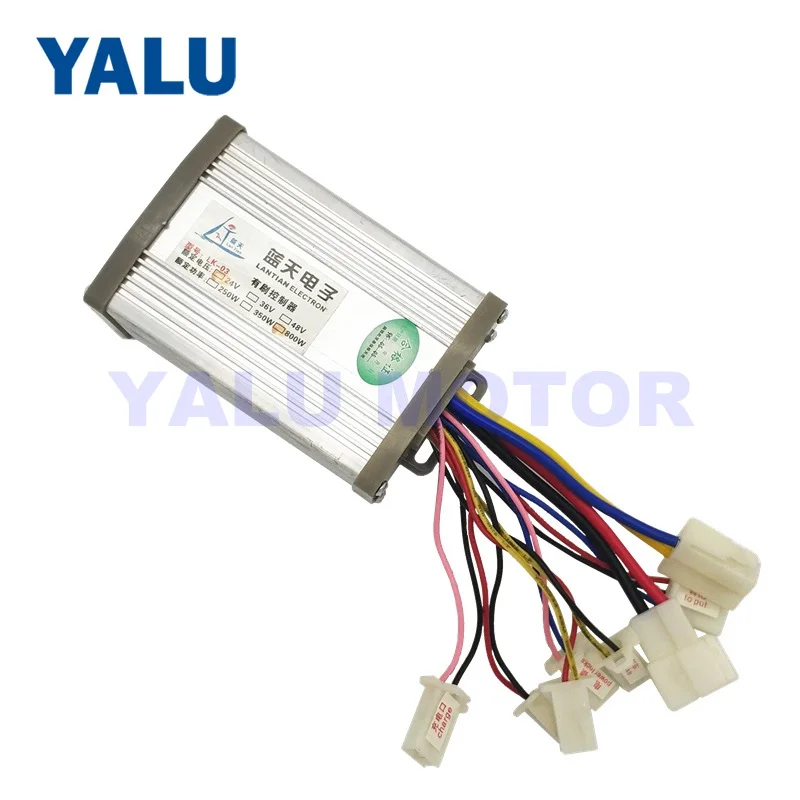

24V 36V 48V 800W Ebike Speed DC Controller for Electric Bicycle Brush Track Bikes MTB Tricycle Vehicles 24V/36V/48V 800W Brushed Controller: Main technique parameter: 800W 24V Controller Main Technique Parameter: Controller type:Brush type Rated voltage:24V Rated power:800W Throttle potential:5V Under-voltageProtection :19V-20.5V Current limiting Protection:39A-41A Adaptation Motor:24V 800W Ambient Temperature:-20℃--45℃ Brake potential:Low level brakes Size: 10.5*6.9*3.2cm(L*W*H) 800W 36V Controller Main Technique Parameter: Controller type:Brush type Rated voltage:36V Rated power:800W Throttle potential:5V Under-voltageProtection:30V-32V Current limiting Protection:39A-41A Adaptation Motor:36V 800W Ambient Temperature:-20℃--45℃ Brake potential:Low level brakes Size: 10.5*6.9*3.2cm(L*W*H) 800W 48V Controller Main Technique Parameter: Controller type:Brush type Rated voltage:48V Rated power:800W Throttle potential:5V Under-voltageProtection:40V-42V Current limiting Protection:34A-36A Adaptation Motor:48V 800W Ambient Temperature:-20℃--45℃ Brake potential:Low level brakes Size: 10.5*6.9*3.2cm(L*W*H) Item Photos: The Controller’s Wiring: 1.Red black wire(red positive black negative); 2. motor wire 3.speed throttle. 4. Indicator ; 5. Charger 6.power lock 7. Brake 8. Brakes light. Special Note: 1. the power supply line positive and negative cannt connection wrong, otherwies will burn out. 2. This controller only can wiring brush DC Motor,cant use to wiring the BLDC Motor. The Controller Wiring Instructions: As the above controller example, to work on the motor at least to connect the four joints, Firstly,the controller two crude bule wire and yellow wire connect with motor.The blue wire connect with red wire of motor, the white wire connect with the black color of motor. Then the controller two crude red wire and black wire connect with battery. The red wire connect with battery positive electrode, the black wire connect with negative electrode. Thirdely,connect with throttle (the throttle have three wires,it must need red connect with red wire,black connect with black wire). Then connect with the power lock, open the power lock,rotate throttle then the motor can start work. Company Profile YALU Motoris a technology,industry and trade integrated comprehensive enterprise.We are the permanent magnet DC motor professional manufacturer. Ourmain products include DC L&H voltage motor,Gear motor,Brush motor,Brushless motor and electric vehicle drive system (motor, reducer and controller etc parts) etc. The products widely used on leisure sports car , elderly scooter, electric tricycle and electric vehicle;all kinds of audio-visual, office, communication equipment, home appliances, medical supplies, electronic products, adult products, electric toys, computer cooling system etc............. Our Workshop Our Team Payment and Shipping PAYMENT: 1. We accept Bank Transfer, Western Union, Alibaba Escrow and Paypal. 2.Please make sure to confirm the order when you receive the items in agood condition, because when you place a order,your money istransferring into the Escrow, not our account. SHIPPING: 1. For the Motor item,due to it have magnetic,the reasonable shipping way is commercial express company. The other waylike EMS and china air post are slowly and some places track feedback slowly. Pleasechoose the most of you prefer delivery way. 2.The most reliable,affordable way of shipping method depends on your address.you may choose freely as your wish onour shipment column. Delivery time: 1.Within 3-15working days after payment receipt confirmed(based on order quantity) . 2.Shipingtime depends on destination,delivery way of your selectand other factors, it may takes up to more days. If you can't receive it after40 days. Please contact us for resolution. 3.Shipping may influenced by holidays, events and other uncertainties. We could not guarantee the arrival time. Packing: Standard export packing,or customized packing as your request. FAQ Q: What is the terms forDefective Order? A1:If the order you received is the manufacturer’s defect,please email us pictures of the defective itemimmediately. A2:Damaged in Transit: Inspect your pacakge(s) before you accept it. If you find the item was damagedduring theshipment,please refuse to accept the parcel and ask the postman to leave a note ofdamage,then contact usimmediately.As soonas we confirm with our carrier,we will get a replacementon its way to you. Q: About the Feedback: A:We appreciate your business, if you are satisfied with our service, please leave us a 5 stars positive feedback. and we will do the same for you. If you have any questions, please contact us first,and we will reply all thequestions from our customers in one working day .simply leaving negative or neutral feedback can't solve the problem. A2: Due to the time difference between China and other countries, when you are browsing the produce in our shop, we maybe not online,but please be assured. If you have any questions may feel free send message or email to us, we will reply you within 24 hours. When you place the order,we will delivery the goods to you in the shortest possible time. Thanks a lot for your kindly undnerstanding and support! Q:Can i be your company sale agent in our market? A:Yes,Accept OEM&ODM,and batch orders;We are develop the agents cooperation in all regions of the world. Welcome contact With us. Q: How can i trust you? A1: We are starting manufacturer the motors from 1980S. Have more than 20 years production experience. We are looking for long term business cooperate with client.not one time business. A2: On item quality: Our production concept: manufacturing high-quality products,escort the safety and convenience for user. A3: Our corporate values: Give customers a good, fair deal. Do not try to maximize the short-term profits at the expense ofbuilding those enduring relationships. We should never let the conflict which generating from profit center to obstruct our quality service for customers. Contact Us @@@@@@@@ Company Name: Wenzhou Yalu Electric Co., Ltd. Address: Caotian Hou Village,Liushi Town,Yueqing, Zhejiang,China Full Name: Andy Whatsapp/Wechat/Mobile: +86 183 5783 3197 or 86-13780106710 Tel/Fax: +86 577 6161 7377 Email: yalu@wzyalu.com Skype: marina.wu QQ: 502214276 Trademanager ID: wzyalu Web: yalumotor.com If you want to know more about our products please feel free to contact us now! Any enquiries are warmly welcomed. and we'd like to offer our sincere service to promote our cooperation. Customized Electric Bike Cycle Motor Kit Company Profile YALU Motoris a technology,industry and trade integrated comprehensive enterprise.We are the permanent magnet DC motor professional manufacturer. Ourmain products include DC L&H voltage motor,Gear motor,Brush motor,Brushless motor and electric vehicle drive system (motor, reducer and controller etc parts) etc. The products widely used on leisure sports car , elderly scooter, electric tricycle and electric vehicle;all kinds of audio-visual, office, communication equipment, home appliances, medical supplies, electronic products, adult products, electric toys, computer cooling system etc............. Our Workshop Our Team Payment and Shipping PAYMENT: 1. We accept Bank Transfer, Western Union, Alibaba Escrow and Paypal. 2.Please make sure to confirm the order when you receive the items in agood condition, because when you place a order,your money istransferring into the Escrow, not our account. SHIPPING: 1. For the Motor item,due to it have magnetic,the reasonable shipping way is commercial express company. The other waylike EMS and china air post are slowly and some places track feedback slowly. Pleasechoose the most of you prefer delivery way. 2.The most reliable,affordable way of shipping method depends on your address.you may choose freely as your wish onour shipment column. Delivery time: 1.Within 3-15working days after payment receipt confirmed(based on order quantity) . 2.Shipingtime depends on destination,delivery way of your selectand other factors, it may takes up to more days. If you can't receive it after40 days. Please contact us for resolution. 3.Shipping may influenced by holidays, events and other uncertainties. We could not guarantee the arrival time. Packing: Standard export packing,or customized packing as your request. FAQ Q: What is the terms forDefective Order? A1:If the order you received is the manufacturer’s defect,please email us pictures of the defective itemimmediately. A2:Damaged in Transit: Inspect your pacakge(s) before you accept it. If you find the item was damagedduring theshipment,please refuse to accept the parcel and ask the postman to leave a note ofdamage,then contact usimmediately.As soonas we confirm with our carrier,we will get a replacementon its way to you. Q: About the Feedback: A:We appreciate your business, if you are satisfied with our service, please leave us a 5 stars positive feedback. and we will do the same for you. If you have any questions, please contact us first,and we will reply all thequestions from our customers in one working day .simply leaving negative or neutral feedback can't solve the problem. A2: Due to the time difference between China and other countries, when you are browsing the produce in our shop, we maybe not online,but please be assured. If you have any questions may feel free send message or email to us, we will reply you within 24 hours. When you place the order,we will delivery the goods to you in the shortest possible time. Thanks a lot for your kindly undnerstanding and support! Q:Can i be your company sale agent in our market? A:Yes,Accept OEM&ODM,and batch orders;We are develop the agents cooperation in all regions of the world. Welcome contact With us. Q: How can i trust you? A1: We are starting manufacturer the motors from 1980S. Have more than 20 years production experience. We are looking for long term business cooperate with client.not one time business. A2: On item quality: Our production concept: manufacturing high-quality products,escort the safety and convenience for user. A3: Our corporate values: Give customers a good, fair deal. Do not try to maximize the short-term profits at the expense ofbuilding those enduring relationships. We should never let the conflict which generating from profit center to obstruct our quality service for customers. Contact Us @@@@@@@@ Company Name: Wenzhou Yalu Electric Co., Ltd. Address: Caotian Hou Village,Liushi Town,Yueqing, Zhejiang,China Full Name: Andy Whatsapp/Wechat/Mobile: +86 183 5783 3197 or 86-13780106710 Tel/Fax: +86 577 6161 7377 Email: yalu@wzyalu.com Skype: marina.wu QQ: 502214276 Trademanager ID: wzyalu Web: yalumotor.com If you want to know more about our products please feel free to contact us now! Any enquiries are warmly welcomed. and we'd like to offer our sincere service to promote our cooperation. Customized Electric Bike Cycle Motor Kit
